The problem-solver on site

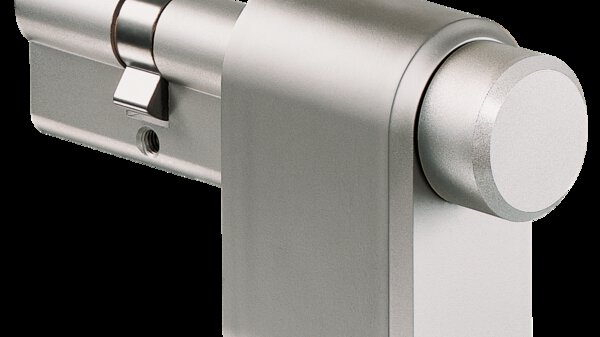

CEMO motor cylinder

Comfort and control cleverly combined
The CEMO motorised cylinder is ideal for premises with a large number of users, varying access rights and high organisational demands, such as in office, educational, public or industrial buildings. It combines the advantages of mechanical locking systems with electronic control: convenient for everyday use, secure in an emergency. Time- or event-based access is possible, whilst mechanical operation remains available at all times.
Zur CEMO Broschüre
Automatic locking and unlocking

How the CEMO works

Electronically controlled, mechanically reliable
The CEMO motorised cylinder locks and unlocks doors automatically via a separate electronic control unit. It can be controlled via access control systems such as RFID or code entry, time-based authorisations (e.g. day/night operation) and external systems such as timers or building management systems. In the event of a power cut or an emergency, the CEMO can still be operated mechanically using a key at any time. On the inside, access is also possible via a door handle, an access button or sensors.

Downloads

BRO2006_EN_Datenblatt_CEMO-Motorzylinder_VA3_O.pdf PDF
BRO2206_EN_Manual_CEMO_Motor_cylinder_V0.pdf PDF

Advantages

  • Flexible installation; can be used regardless of the existing fittings
  • High speed. Opening and locking time approx. 1.5 seconds (for a 2-turn lock)
  • Intelligent lock detection. Automatic detection of DIN left/right, bolt positions and anti-panic functions
  • Reliable operation. High operational reliability thanks to robust, tried-and-tested mechanics
  • Convenience with a safety margin. Automatic operation whilst the mechanical emergency mode remains fully functional
  • Seamless system integration. Compatible with all CES locking systems from the S4000 series onwards
Open to systems and applications

Integration and expansion

Can be used flexibly as a complete solution
The CEMO motorised cylinder can be flexibly integrated into both existing and new comprehensive solutions. Possible connections range from motion detectors and centralised opening and locking solutions using panel technology to integration into building management systems. It can also be used as a replacement for electric door openers, as well as for door monitoring via contacts and sensors. This makes the CEMO ideal for retrofitting existing buildings as well as for new builds.
For a wide range of commercial requirements

Typical areas of application

Versatile and suitable for use in a wide range of environments
The CEMO motorised cylinder is suitable for a wide range of applications – from office and administrative buildings, through educational establishments, clinics and municipal properties, to industrial and commercial premises. CEMO can also be used in residential properties and in areas with escape and rescue routes, provided the relevant door and lock approvals are observed. Various lock types are supported, such as multi-point locks, reversible locks, anti-panic locks and deadbolt-only locks.
