DIN EN 179 for

Emergency exit locks

When it really matters

Our property locks, which comply with the DIN EN 179 standard and are used in escape doors, enable a safe escape in emergency situations with just a single operation of the emergency exit latch.

These locks also meet fire safety requirements.

Types of emergency exit locks

for single-leaf fire doors

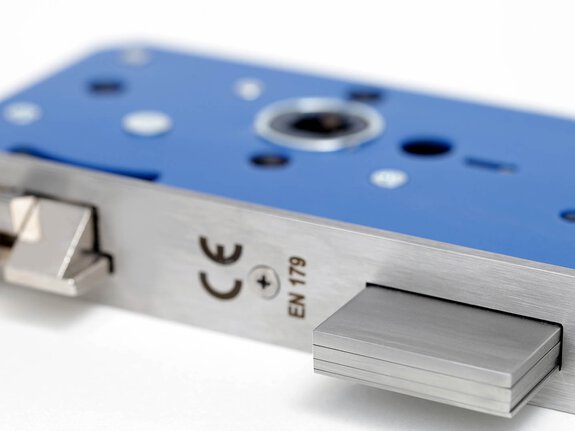

Panic mortise lock 9100GE

Forend 20 × 235 mm rebated or 24 × 235
mm flush-mounted, with square or rounded edges,
matt-finished stainless steel (1.4301/AISI 304)

Anti-panic function “E”
Distance 72 mm, backset 55 (60, 65, 70 and 80 mm)
TENAX clamping follower, 8 mm, mounted in galvanised steel rings
Latch bolt, nickel-plated
Solid steel dead bolt, nickel-plated, 2-turn with a 20 mm throw

Go to the data sheet

Panic mortise lock with latch 9100GE-SP

Forend 20 × 235 mm rebated or 24 × 235
mm flush-mounted, with square or rounded edges,
matt-finished stainless steel (1.4301/AISI 304)

Anti-panic function “E”
mechanical anti-drop device (anti-thrust latch)
Distance 72 mm, backset 55 (60, 65, 70 and 80 mm)
TENAX clamping follower, 8 mm, mounted in galvanised steel rings
Latch bolt, nickel-plated
Solid steel dead bolt, nickel-plated, 2-turn with a 20 mm throw

Go to the data sheet

Panic mortise lock 9100GE

Forend 20 × 235 mm rebated or 24 × 235
mm flush-mounted, with square or rounded edges,
matt-finished stainless steel (1.4301/AISI 304)

Anti-panic function “E”
Distance 72 mm, backset 55 (60, 65, 70 and 80 mm)
TENAX clamping follower, 8 mm, mounted in galvanised steel rings
Latch bolt, nickel-plated
Solid steel dead bolt, nickel-plated, 2-turn with a 20 mm throw

Go to the data sheet

Panic mortise lock with latch 9100GE-SP

Forend 20 × 235 mm rebated or 24 × 235
mm flush-mounted, with square or rounded edges,
matt-finished stainless steel (1.4301/AISI 304)

Anti-panic function “E”
mechanical anti-drop device (anti-thrust latch)
Distance 72 mm, backset 55 (60, 65, 70 and 80 mm)
TENAX clamping follower, 8 mm, mounted in galvanised steel rings
Latch bolt, nickel-plated
Solid steel dead bolt, nickel-plated, 2-turn with a 20 mm throw

Go to the data sheet
