CES | Locks for emergency exits

DIN EN 179 Locks for emergency exits

When every second counts

Our locks for the contract business comply with DIN EN 179 and are intended for use on escape doors, allowing a safe escape from dangerous situations with just one actuation of the emergency lock.

These class-3 locks also comply with the fire protection requirements.

Lock variants for emergency exits

Escape-lock

Escape-lock with anti-thrust latch

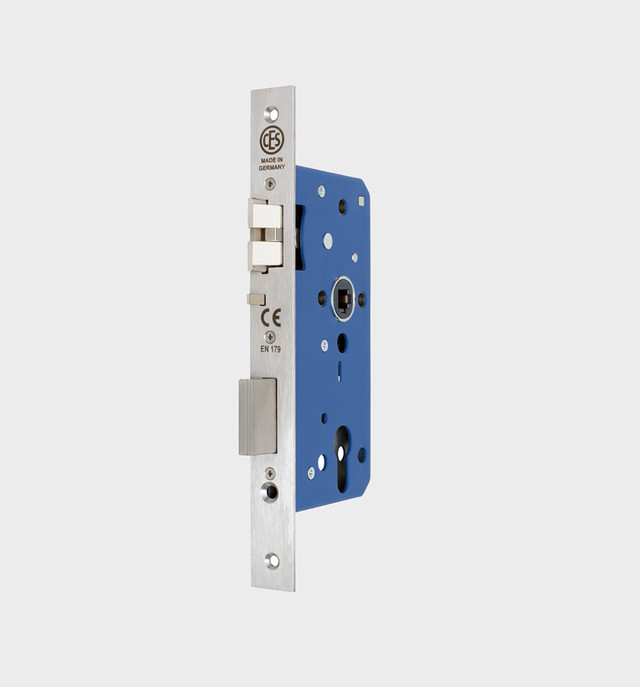

Anti-panic fire protection mortise lock for emergency exits

in accordance with DIN EN 179

For single-leaf fire doors
Anti-panic function “E”
Centre distance 72 mm,
backset 55 (60, 65, 70 and 80 mm)
TENAX clamp follower 9 mm, mounted in zinc-plated steel rings
Forend 20 x 235 mm for rebated doors, or 24 x 235 mm for flush doors, edged or rounded, satin stainless steel (1.4301/AISI 304)
Triple latch made of steel, nickel-plated
Massive steel deadbolt, nickel-plated, 2-throw with
20 mm projection

To the datasheetPDF

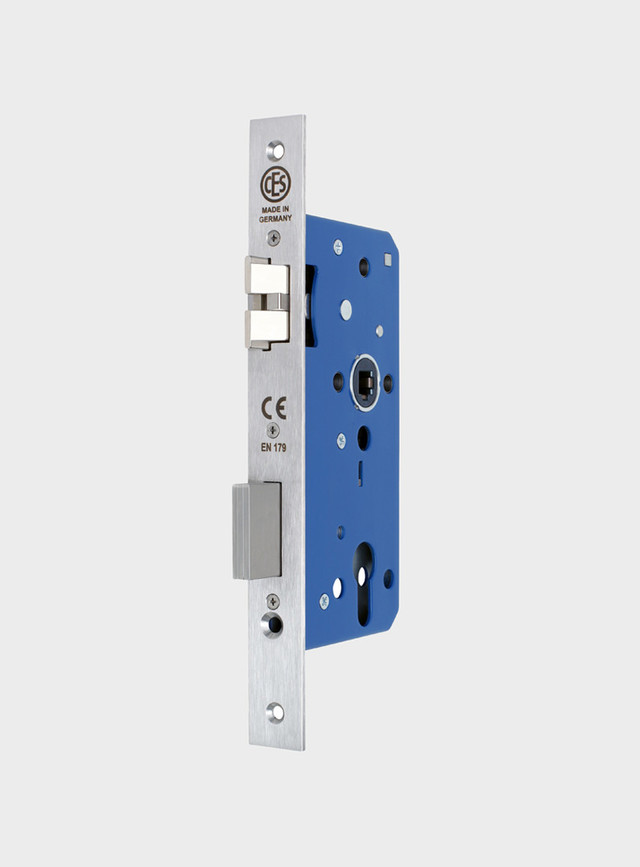

Anti-panic fire protection mortise lock with anti-thrust latch

for emergency exits in accordance with DIN EN 179

For single-leaf fire doors
Anti-panic function “E”
Mechanical latch safety mechanism (anti-thrust latch)
Centre distance 72 mm,
backset 55 (60, 65, 70 and 80 mm)
TENAX clamp follower 9 mm, mounted in zinc-plated steel rings
Forend 20 x 235 mm for rebated doors, or 24 x 235 mm for flush doors, edged or rounded, satin stainless steel (1.4301/AISI 304)
Triple latch made of steel, nickel-plated
Massive steel deadbolt, nickel-plated, 2-throw with
20 mm projection
